Telecom cooling

Telecom cooling

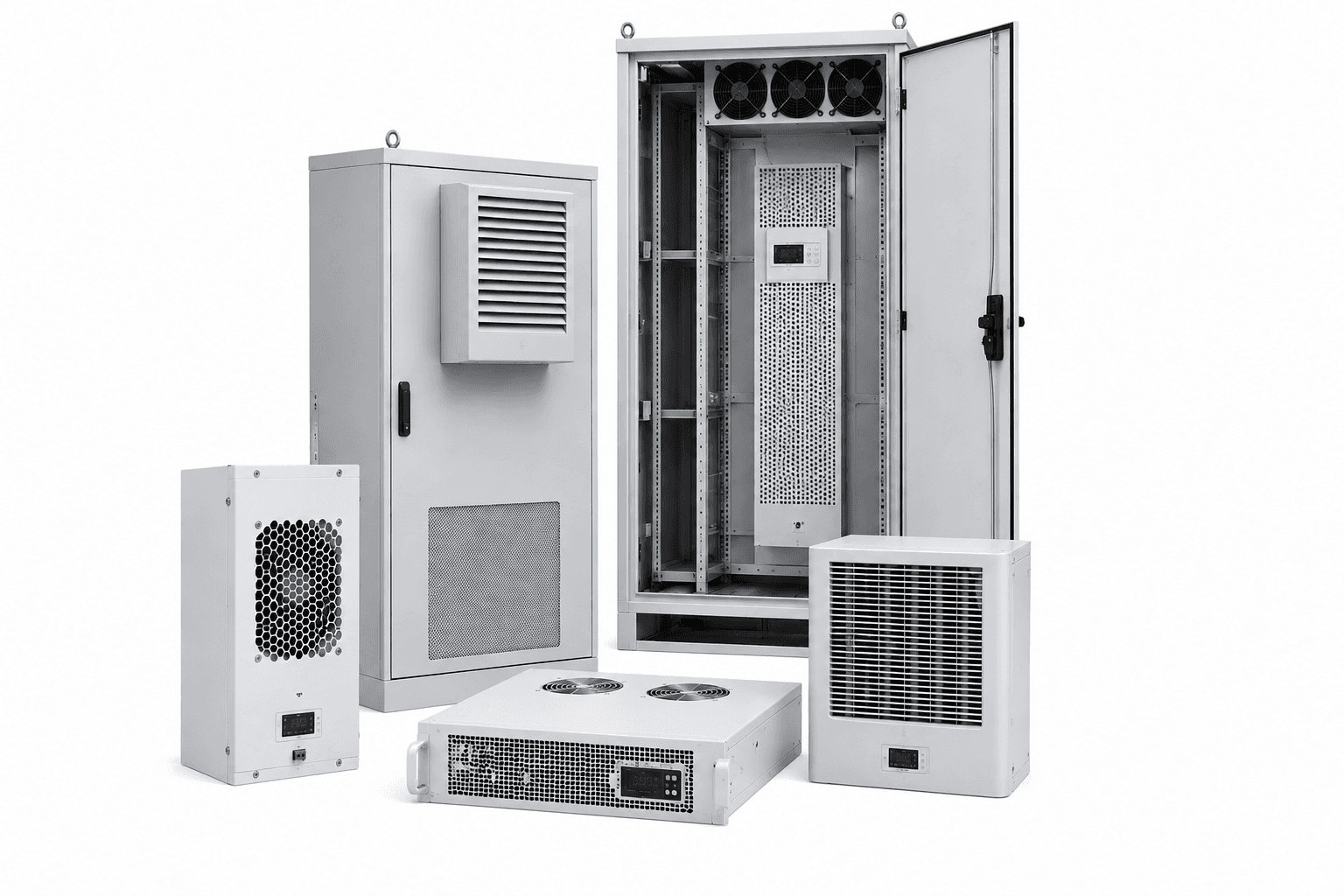

Cabinet Air Conditioner Series TAIC

Technical specifications:
Cooling capacity: From 400 to 3000W

Refrigerant: R410A, R134A

Material: Galvanized steel, stainless steel, aluminium

Temperature range: From -45°C to +65°C

Controller type: TECO AIRCOOL

Type of controller interface: RS-485
Voltage: 220V
Heating system: 500W, 1000W

Data transfer protocol: ModBus RTU

Protection level: IP65

Product details

Technical specifications:
Cooling capacity: From 400 to 2000W

Refrigerant: R410A, R134A

Material: Galvanized steel, stainless steel, aluminium

Temperature range: From -45°C to +65°C

Controller type: TECO AIRCOOL

Voltage: 48VDC
Type of controller interface: RS-485
Heating system: 500W, 1000W

Data transfer protocol: ModBus RTU

Protection level: IP65

Product details

Technical specifications:
Cooling capacity: From 1500 to 3500W

Refrigerant: R410A, R134A

Material: Galvanized steel, stainless steel, aluminium

Temperature range: From -45°C to +65°C

Controller type: TECO AIRCOOL

Voltage: 48VDC and 220V

Type of controller interface:RS-485
Heating system: 500W, 1000W

Data transfer protocol: ModBus RTU

Protection level: IP65

Product details

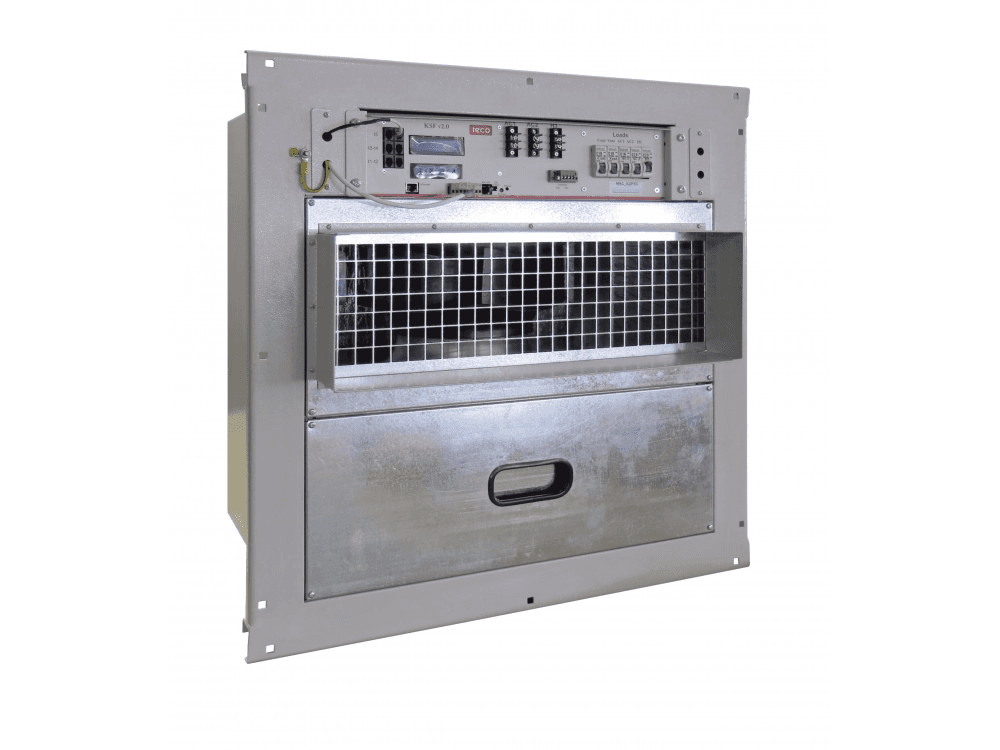

Free Cooling System

Technical specifications:
Cooling capacity: From 2000 to 4000W

Filter type: Industrial G4 filtration class

Material: Galvanized steel, stainless steel, aluminium

Temperature range: From -45°C to +65°C

Controller type: TECO AIRCOOL

Installation type: Two separate blocks installed on the walls

Voltage: 48VDC
Type of controller interface: RS-485
Air recirculation mode: Optional
Data transfer protocol: ModBus RTU

Protection level: IP65

Technical specifications:
Construction type: Open-frame / semi-enclosed steel rack

Height: 2/4/6/8/10/12U
Width: 650-800 mm

Depth: 650-800 mm

Material options: Galvanized steel / Stainless steel / Aluminium (optional)

Load capacity: Up to 1000–1500 kg (depending on configuration)

Installation: Floor / wall mounted

Temperature range: From -45°C to +65°C

Insulation: Three options: without insulation, with insulation, double wall

Cooling system: free cooling, air-conditioner, hybrid air-conditioner with built in free cooling

Heating system: without heaters, heater, heater built in air-conditioner

Lock type: Handle or safe type (electrical lock optional)

Color: RAL 7035, RAL 7020

Protection level: IP65

Product details
