Climate-controlled wall cabinet
Floor-standing Outdoor Cabinet NF-F 15U
Technical specifications
Height: 15 - 44U
Width: 650-800 mm
Depth: 650-800 mm
Instalation: Floor
Material: Galvanized steel, stainless steel, aluminium Temperature range: From -45°C to +65°C
Insulation: without insulation, with insulation, double wall Cooling system: free cooling, air-conditioner, hybrid air-conditioner with built in free cooling
Heating system: without heaters, heater, heater built in air-conditioner
Lock type: Handle or safe type (electrical lock optional) Color: RAL 7035, RAL 7020
Protection level: IP65
Contact Us
Description:

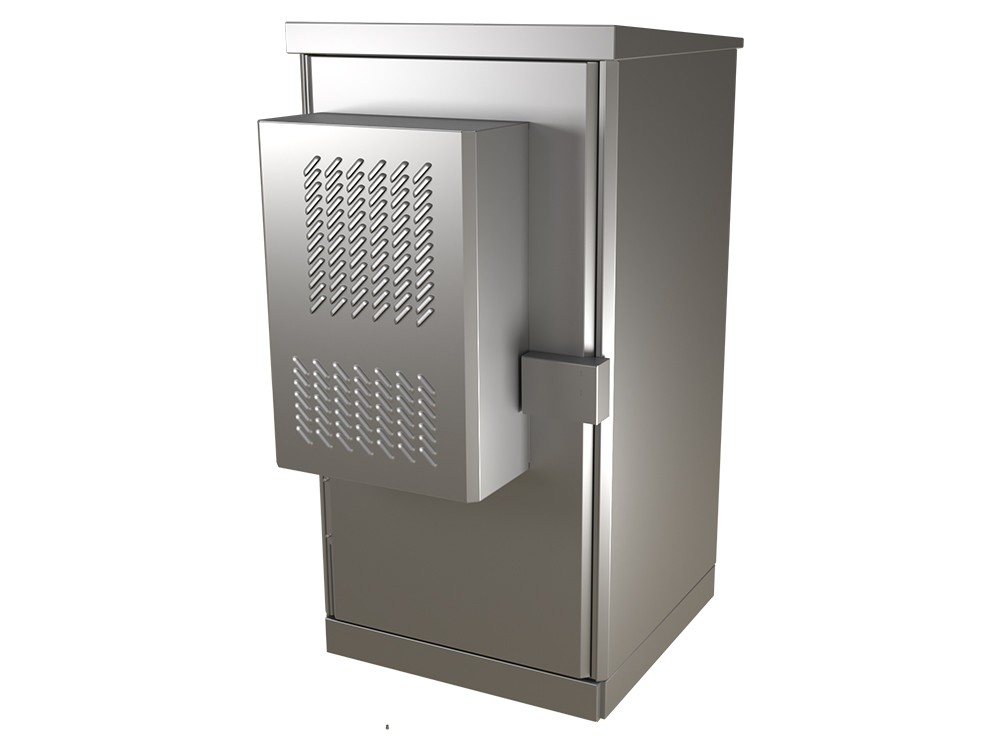

Floor-standing Outdoor Cabinet NF-F
The Floor-standing Outdoor Cabinet NF-F is designed to optimize operating costs, protect telecommunications equipment from harsh climatic conditions, humidity, unauthorized access, and theft.
The NF-F telecommunication cabinet features a high level of protection and energy-efficient climate control systems. The cabinet is divided into separate climate zones to optimize energy consumption of the cooling system.

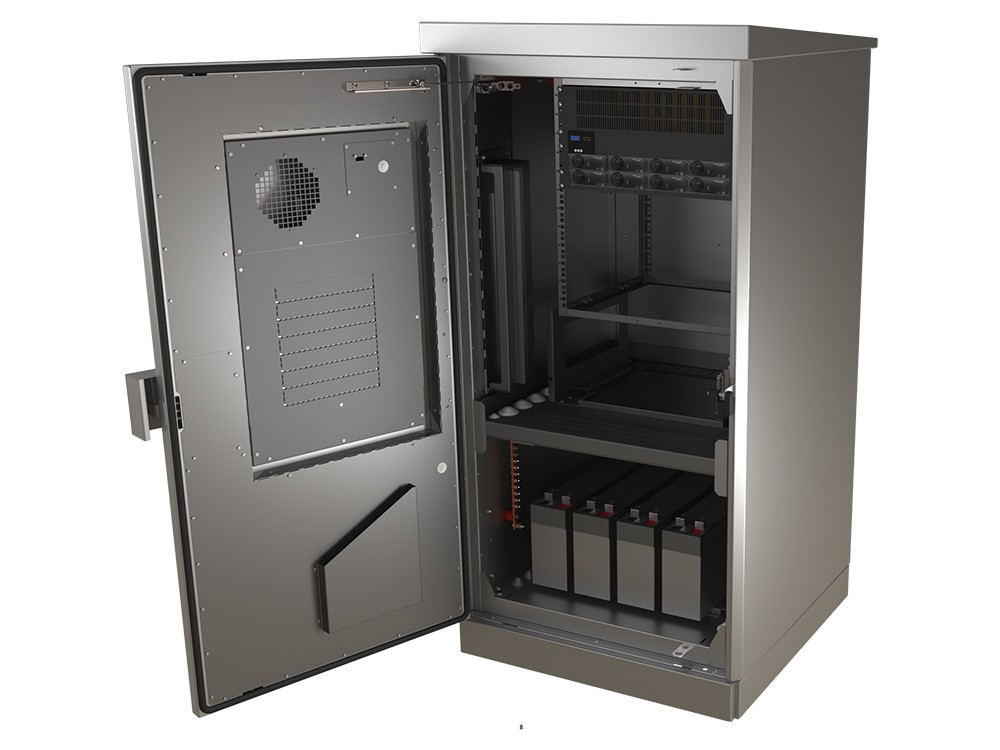

The cabinet features a robust, all-welded construction with a load capacity of up to 1500 kg. It can be optionally equipped with thermal insulation, a handle, or a high-security locking system. A cooling system based on natural ventilation or air conditioning, as well as an integrated heating system, ensures reliable operation of equipment and batteries under all environmental conditions.
A turnkey solution is available, including the integration of power supply systems, electrical distribution, a full set of sensors, and battery backup systems.
Key Advantages:
Vandal-resistant design
Enclosure wall thickness: 1.5–2 mm
Locking systems with security levels 2 / 3 / 4
Wall or pole mounting options (mounting kit included)
Optional enclosure materials: stainless steel or aluminum (C4 corrosion protection level)
Energy Efficiency:
-Low thermal conductivity enclosure design
-Low-noise cooling system
-Energy-efficient climate solutions (ventilation system and fan heater)
