Battery Cabinet Systems (Indoor racks)
Battery Cabinet Systems (Indoor racks)
Technical specifications
Construction type: Open-frame / semi-enclosed steel rack
Height: 7 - 44U
Width: 650-800 mm
Depth: 650-800 mm
Load capacity: Up to 1000–1500 kg (depending on configuration)
Installation: Floor-mounted
Battery configuration: Modular (multi-string support)
Cooling: Passive (room-based ventilation)
Seismic resistance: Optional (zone-dependent reinforcement kit)
Contact Us
Description:
Battery Cabinet Systems (Indoor racks)
The Battery Cabinet Systems are designed as dedicated enclosure solutions for secure installation of battery strings and DC power equipment in telecom, industrial, and energy applications.
The portfolio is divided into two product lines:
-Indoor Battery Racks

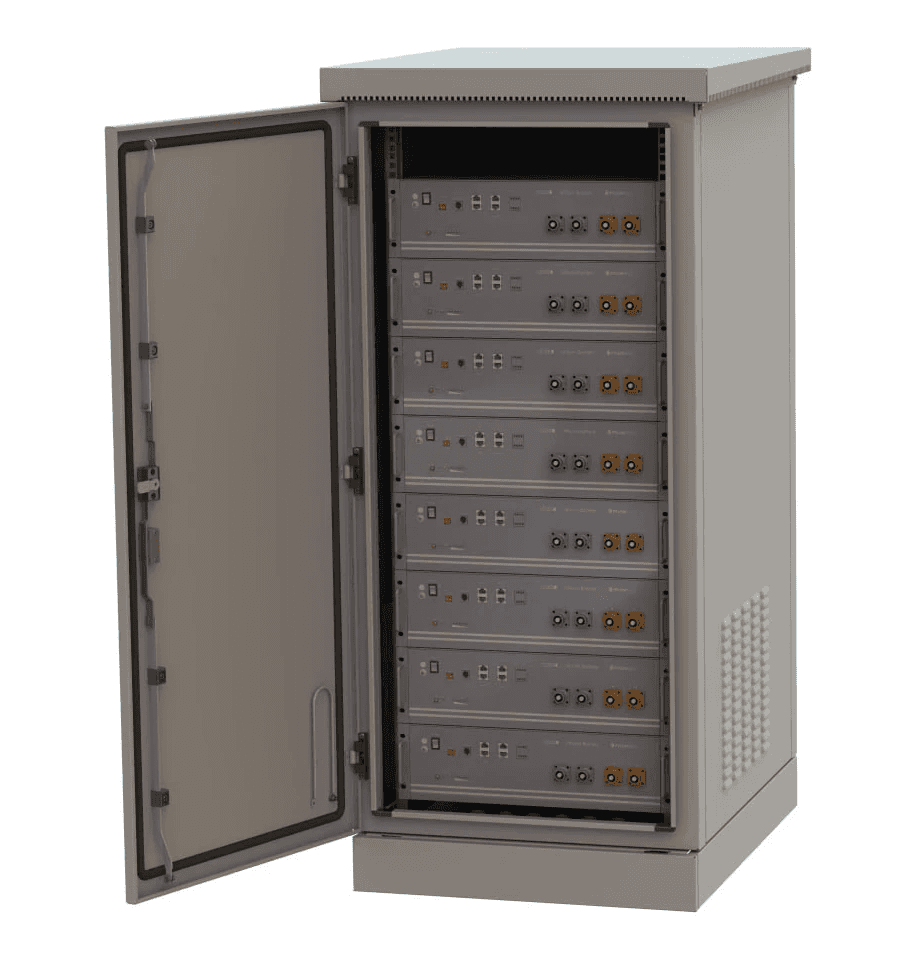

-Outdoor Battery Cabinets
Both solutions ensure safe mechanical housing, optimized airflow, cable management, and reliable long-term operation of installed battery systems.

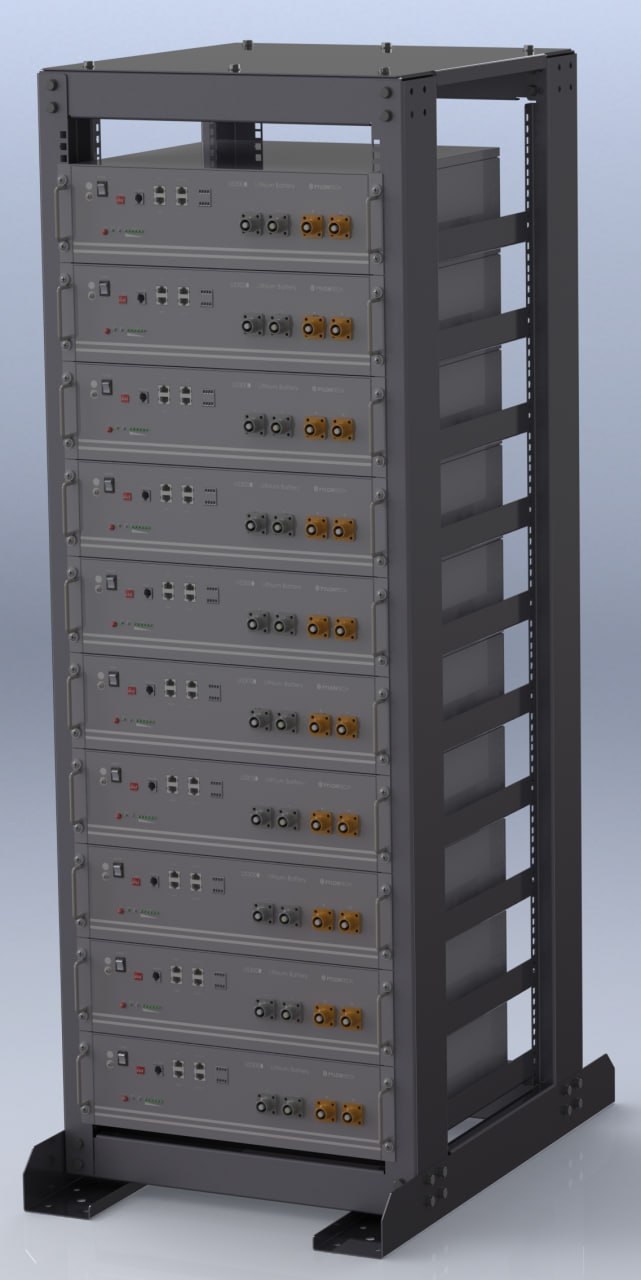

Indoor Battery Racks.
Indoor battery racks are designed for installation in controlled environments such as telecom rooms, data centers, and technical facilities. The racks provide a structured and scalable platform for battery installation with optimized accessibility and cable management.
System Description
The indoor rack system is a open-frame or semi-enclosed steel structure designed for standardized battery module installation.
Key construction features include:
Heavy-duty steel frame construction
Adjustable mounting rails for battery configuration flexibility
Optimized cable routing and DC bus integration support
High load-bearing capacity for multi-string battery systems
Optional seismic reinforcement (on request)
Optional battery suuport rails (on request)
The system is designed for integration with external rectifiers, UPS systems, and DC distribution units.
Key Advantages.
Flexible and modular rack configuration
Easy installation and maintenance access
Optimized space utilization
High mechanical stability for heavy battery systems
Compatible with telecom and industrial power systems
Scalable design for multi-rack installations for instalations from 2 up to 12 batteriesBattery Cabinet Systems (Indoor / Outdoor Enclosures)
